Product Highlights
- 48 unified ports support Ethernet or Fibre Channel (1/10/25G or 16/32G)
- 6 QSFP28 uplink ports (40/100G) for high-speed aggregation
- MACsec encryption for wire-speed data protection
- <1 microsecond latency optimized for financial/HPC workloads
- Dual redundant hot-swappable power supplies (AC/DC)
- NX-OS software with VXLAN support and Layer 2/3 capabilities
Overview

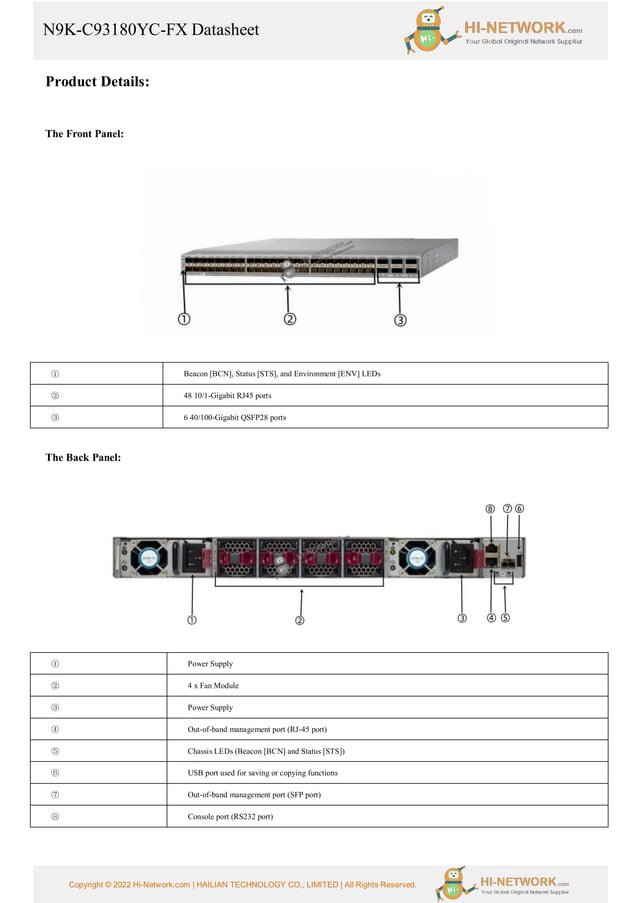

The Cisco Nexus 93180YC-FX is a 1RU data center switch delivering 3.6 Tbps bandwidth with ultra-low latency (<1μs). It features 48 unified ports supporting 1/10/25G Ethernet or 16/32G Fibre Channel, plus 6 high-speed 40/100G QSFP28 uplinks. Engineered for performance-critical environments with dual redundant power and MACsec encryption.
Technical Specifications
| Switching Capacity | 3.6 Tbps |
|---|---|
| Forwarding Rate | 2.6 Bpps |
| Port Configuration | 48 x 1/10/25G SFP28 + 6 x 40/100G QSFP28 |
| Buffer Memory | 40 MB shared |
| System Memory | 32 GB |
| Flash Storage | 128 GB SSD |
| Form Factor | 1RU |
| Dimensions | 1.72 x 17.3 x 22.5 in (H x W x D) |
| Weight | 24.4 lbs (11.1 kg) |
| Power Supplies | Dual redundant (500W AC/930W DC/1200W HVAC) |
| Operating System | NX-OS |
| Latency | <1 microsecond |
